RM 037
| Brand : | Richard Mille |
| Collection : | RM 037 |
| Model : | RM 037 |
| Complement : | White gold |
| On sale : | 2012 |
PDF INDEX CARD
-
Brand : Richard Mille Collection : RM 037 Model : RM 037 Complement : White gold On sale : 2012 List Price : 87 000 € Height : 52.20 mm Width : 34.40 mm Thickness : 12.50 mm Styles : Atypical High Horology Sporty Types : Self-winding Calibre : CRMA1 Complication : Function Indicator Skeleton Case material : White gold Brushed Case peculiarity : Traitement antireflet Sapphire caseback Red gold pusher at 10 o'clok for the date display Red gold pusher at 4 o'clock for function selector Shape : Tonneau Water-resistance : 50 meters Dial : Antirelflective sapphire crystal with indexes Display : Luminescent hands Indexes : Dots Roman numerals Luminescent Glass : Sapphire Antireflective coating Strap material : Rubber Strap color : Black + More characteristics : Movement Dimensions: 28.00 x 22.90 mmThickness: 4.82 mmNumber of jewels: 25Balance:CuBe. 4 arms. 4 setting screws. inertia moment 7.5 mg.cm2. angle of lift 50ºFrequency: 28.800 vph (4 Hz)Balance spring: AK3Shock protection: Incabloc Escapement wheel jewels: RubifixTitanium baseplate and bridgesNew rotor with variable geometryFree sprung balance with variable inertiaFast rotating barrelNewly developed gear teeth profileOversize date displayFunction selectorW(winding)N(neutral)H(hand setting)Tripartite w18K white gold case2 Nitril O-ring seals20 spline screws in grade 5 titaniumDial in sapphire with anti-glare treatmentLaser-engraved numbersUpper flange in carbon fiber
DESCRIPTION
- SIHH 2012 - RICHARD MILLETHE IN-HOUSE CALIBER CRMA1 AND THE RICHARD MILLE RM 037
As an advance release to the upcoming SIHH 2012 collection to be presented in January, Richard Mille is pleased to present today a landmark new timepiece, the RM 037 and the new automatic caliber CRMA1. It represents an original in-house construction by the Richard Mille movement designers in Les Breuleux, Switzerland.

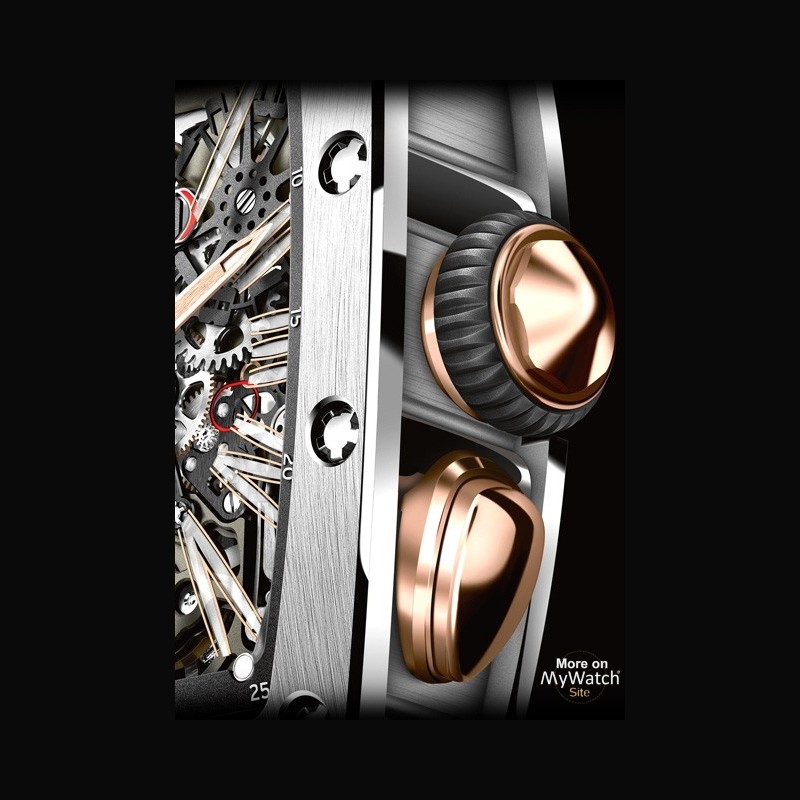

This automatic winding caliber created from skeletonized grade 5 titanium sports an oversize date at 12 o'clock and a function window at 4 o' clock. Two subtly shaped pushers are located at 4 and 10 o’clock. The pusher at 4 o'clock allows one to select the winding (W), neutral (N) and hand setting (H) functions with a simple push. An aperture located at 4 o'clock shows the function selected. The second pusher, at 10 o'clock, controls date changes, for instance when one is traveling or needs to correct the date for months with 29, 30 and 31 days. A simpler and easier method of correcting the date would be impossible to imagine.
The RM 037 is fitted with a new crown mechanism, patented by Richard Mille for its own movement. Traditionally, the crown is attached directly to the movement which means the watchmaker will need to insert the stem at the point of assembly. The direct connection between the movement and crown can therefore sometimes be the cause of damage to the movement in the case of a sharp knock to the crown.
The engineers at Richard Mille have been able to find a solution to this problem on the RM 037 and the crown is now separated from the case. This means the stem is no longer required and the risk of losing the crown or breaking the stem in the movement after a knock is minimalised. The crown is available in polished grade 5 titanium, red gold or white gold with double seal O-ring and collar in Alcryn.
The design and execution of the watch demonstrates a complete conceptual in approach to the movement, case and dial. As a result, everything has been constructed according to extremely rigorous specifications, rather like the analytical engineering methods used in the design of Formula 1 racing cars where the chassis and the engine are developed in total union. 44 different stamping operations are required for the three main components of the case (bezel, caseband and case back). The machine tooling process requires 2 days of adjustment for the bezel, 2 days for the caseband and 2 days for the case back. The empty case requires more than 255 tooling operations and more than 5 hours of glazing and polishing in the final stage. The complex shape of the case is obtained thanks to a 5 axis machine. On each case, the “Richard Mille” engraving on the back and situated on the inside curve requires 45 hours. The tripartite case is water resistant to 50 meters, ensured by 2 Nitril O-ring seals. The case is assembled with 20 spline screws in grade 5 titanium and abrasion resistant washers in steel 316L.
Many details form the signature of the RM 037, such as a power reserve of 50 hours, a new rotor with variable geometry, a free sprung balance with variable inertia, the extensive use of spline screws throughout the movement ...
Extreme technique, sophistication and hand-finished in the great tradition of Swiss watchmaking ... the new in-house caliber CRMA1, is an exceptional piece which exemplifies the innovative style which is Richard Mille.
- SIHH 2012 - RICHARD MILLETHE IN-HOUSE CALIBER CRMA1 AND THE RICHARD MILLE RM 037
As an advance release to the upcoming SIHH 2012 collection to be presented in January, Richard Mille is pleased to present today a landmark new timepiece, the RM 037 and the new automatic caliber CRMA1. It represents an original in-house construction by the Richard Mille movement designers in Les Breuleux, Switzerland.
This automatic winding caliber created from skeletonized grade 5 titanium sports an oversize date at 12 o'clock and a function window at 4 o' clock. Two subtly shaped pushers are located at 4 and 10 o’clock. The pusher at 4 o'clock allows one to select the winding (W), neutral (N) and hand setting (H) functions with a simple push. An aperture located at 4 o'clock shows the function selected. The second pusher, at 10 o'clock, controls date changes, for instance when one is traveling or needs to correct the date for months with 29, 30 and 31 days. A simpler and easier method of correcting the date would be impossible to imagine.
The RM 037 is fitted with a new crown mechanism, patented by Richard Mille for its own movement. Traditionally, the crown is attached directly to the movement which means the watchmaker will need to insert the stem at the point of assembly. The direct connection between the movement and crown can therefore sometimes be the cause of damage to the movement in the case of a sharp knock to the crown.
The engineers at Richard Mille have been able to find a solution to this problem on the RM 037 and the crown is now separated from the case. This means the stem is no longer required and the risk of losing the crown or breaking the stem in the movement after a knock is minimalised. The crown is available in polished grade 5 titanium, red gold or white gold with double seal O-ring and collar in Alcryn.
The design and execution of the watch demonstrates a complete conceptual in approach to the movement, case and dial. As a result, everything has been constructed according to extremely rigorous specifications, rather like the analytical engineering methods used in the design of Formula 1 racing cars where the chassis and the engine are developed in total union. 44 different stamping operations are required for the three main components of the case (bezel, caseband and case back). The machine tooling process requires 2 days of adjustment for the bezel, 2 days for the caseband and 2 days for the case back. The empty case requires more than 255 tooling operations and more than 5 hours of glazing and polishing in the final stage. The complex shape of the case is obtained thanks to a 5 axis machine. On each case, the “Richard Mille” engraving on the back and situated on the inside curve requires 45 hours. The tripartite case is water resistant to 50 meters, ensured by 2 Nitril O-ring seals. The case is assembled with 20 spline screws in grade 5 titanium and abrasion resistant washers in steel 316L.
Many details form the signature of the RM 037, such as a power reserve of 50 hours, a new rotor with variable geometry, a free sprung balance with variable inertia, the extensive use of spline screws throughout the movement ...
Extreme technique, sophistication and hand-finished in the great tradition of Swiss watchmaking ... the new in-house caliber CRMA1, is an exceptional piece which exemplifies the innovative style which is Richard Mille.
-
Brand : Richard Mille Collection : RM 037 Model : RM 037 Complement : White gold On sale : 2012 List Price : 87 000 € Height : 52.20 mm Width : 34.40 mm Thickness : 12.50 mm Styles : Atypical High Horology Sporty Types : Self-winding Calibre : CRMA1 Complication : Function Indicator Skeleton Case material : White gold Brushed Case peculiarity : Traitement antireflet Sapphire caseback Red gold pusher at 10 o'clok for the date display Red gold pusher at 4 o'clock for function selector Shape : Tonneau Water-resistance : 50 meters Dial : Antirelflective sapphire crystal with indexes Display : Luminescent hands Indexes : Dots Roman numerals Luminescent Glass : Sapphire Antireflective coating Strap material : Rubber Strap color : Black More characteristics : Movement Dimensions: 28.00 x 22.90 mmThickness: 4.82 mmNumber of jewels: 25Balance:CuBe. 4 arms. 4 setting screws. inertia moment 7.5 mg.cm2. angle of lift 50ºFrequency: 28.800 vph (4 Hz)Balance spring: AK3Shock protection: Incabloc Escapement wheel jewels: RubifixTitanium baseplate and bridgesNew rotor with variable geometryFree sprung balance with variable inertiaFast rotating barrelNewly developed gear teeth profileOversize date displayFunction selectorW(winding)N(neutral)H(hand setting)Tripartite w18K white gold case2 Nitril O-ring seals20 spline screws in grade 5 titaniumDial in sapphire with anti-glare treatmentLaser-engraved numbersUpper flange in carbon fiber
